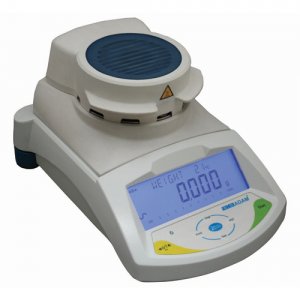

Adam PMB Moisture Analyser

PRODUCT INFORMATION
SPECIFICATIONS
DOWNLOADS

Benefits of the Adam PMB moisture analysers

With outstanding connectivity and rapid test time, PMB moisture analysers offer the top value in their class. An automatic test-setting function enables easy recall for frequent testing of the same material without additional user programming. USB and RS-232 interfaces let you connect the PMB to a computer or printer. Store results and test programs for future reference with a USB memory stick or PMB’s builtin memories. Three heating options offer the flexibility to customise test methods and temperatures. PMB helps free up time for busy lab professionals by allowing them to quickly perform moisture analysis and share test results easily with colleagues.

PRODUCT FEATURES

Vivid, backlit LCD easily visible in any lighting conditions
Programmable back light can be set to "always on," "always off" or "light only when weighing"
Capacity tracker built into display for easily monitoring possible overloads
Scratch-resistant aluminium housing protects internal components
Colour-coded keys facilitate quick recognition of the most frequently used buttons
Pan lifter allows easy placement and removal of samples
RS-232 interface is available to provide speedy connection to computers and printers
USB host for memory card and USB I/O interface
USB interface included for data communication
Temperature range 50°C to 160°C in one-degree increments
Three settings for heating sample include ramp-up, stepped temperatures and single temperature
Seven preset drying modes allow test routines for several products
Audible overload alarm warns when capacity is exceeded
Testing can be set to start automatically when lid closes
Calibration for temperature and weight
Multilingual display allows use in many different countries
Quick and easy configuration using the keypad
Zero-tracking feature ensures display returns to zero reading
Internal memory stores 49 different recipes and up to 99 test results,and additional test results and settings can be stored on a flash drive
Mains power cord

APPLICATIONS

Weighing
Moisture determination

TECHNICAL SPECIFICATIONS

Model	PMB 53	PMB 163	PMB 202
Capacity	50g	160g	200g
Readability	0.001g / 0.01%	0.001g / 0.01%	0.01g / 0.05%
Repeatability (S.D.)	0.001g	0.001g	0.02g
Linearity (+/-)	0.002g	0.002g	0.02g
Pan Size	100mm ø
Weighing Units	g, %M, %S, ATRO %M, ATRO %S
Stabilisation Time (sec)	3
Memory Settings	Internal memory stores up to 99 test results and 49 programmable user settings External USB drive for limitless data storage of test results and settings
Interface	RS-232, USB
Calibration	External calibration
Display	Backlit LCD with 24mm -high digits
Power Supply	Mains power cord
Operating Temperature	0° to 40°C
Housing	Die-cast aluminum
Overall Dimensions	250 x 360 x 185mm (wxdxh)
Net Weight	6kg
