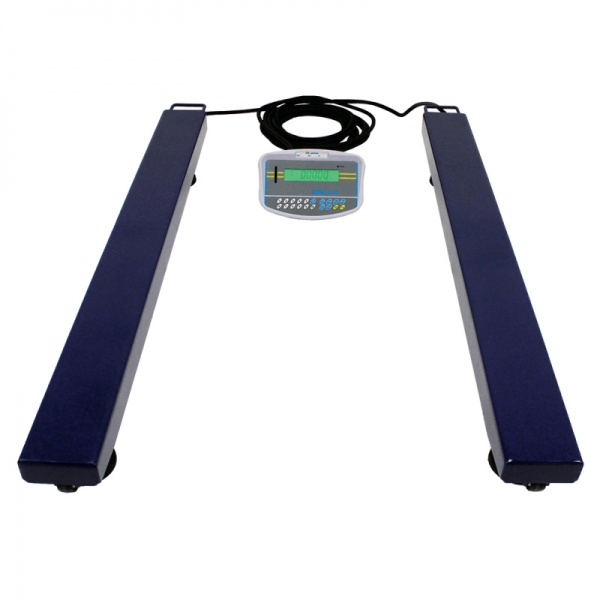

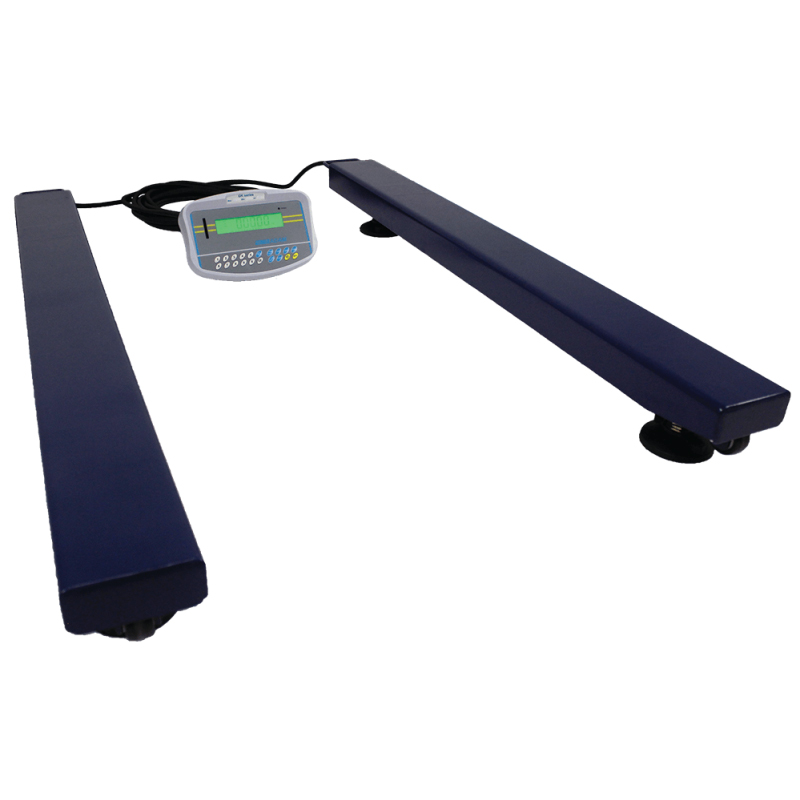

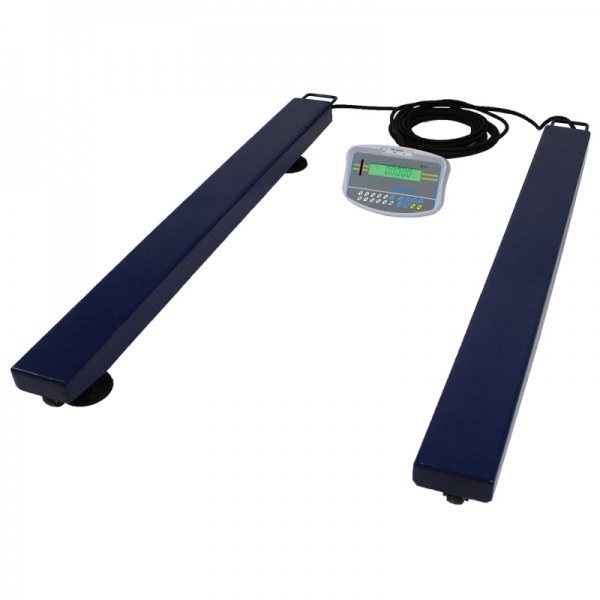

Benefits of the AELP pallet weigh beams
Adam AELP pallet beams provide an affordable solution to weigh oversized or bulky items. Equipped with rugged built-in wheels and handles, AELP pallet beams are easy to set up and move. The low-profile beams permit easy accessibility to simplify loading, weighing and unloading. AELP comes with a five meter shielded cable, allowing the indicator and beams to be positioned as needed. Four OIML approved load cells provide precise, consistent measurements. The AELP pairs well with Adam's GK or AE 402 indicators.
Features & Benefits
- Low-profile beams allow easy pallet weighing using pallet trucks
- Approximately five-meter/15-foot shielded cable
- Heavy-duty rubber feet ensure stability of unit
- Integrated wheels permit easy movement
- Can be used with any Adam indicators
- Two beams per set
- 2 Year warranty
Applications
- Weighing
- Parts counting
- Percentage weighing
- Check weighing
- Check counting
- Dynamic / animal weighing
Specifications
Model | AELP 1000 [GK] | AELP 2000 [GK] | AELP 3000 [GK] |
Capacity | 1000 kg | 2000 kg | 3000 kg |
Readability | 0.2 kg | 0.5 kg | 1 kg |
Loadcell [Excitation Voltage] | 5 - 10 VAC / DC |
Loadcells [num] | 4 |
Beam size | 120 x 1330 mm |
Weighing Units | kg |
Stabilisation Time (sec) | 2 |

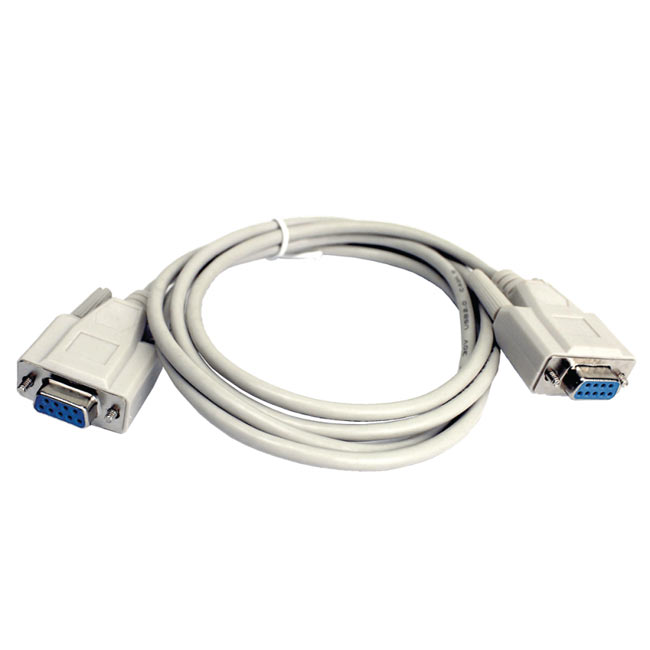

Interface | RS-232 |
Calibration | External calibration |
Display | Backlit LCD with 20mm -high digits |
Power Supply | Mains power cord / Internal rechargeable battery |
Operating Temperature | -10° to 40°C |
Housing | Mild steel base |
Cable Length | 5 m |
Overall Dimensions | 120 x 1330 x 85mm |
Net Weight | 36 kg |
Downloads
Adam AELP Product Brochure
Product Specification Sheet
Download
Adam AELP User Manual
Product User Manual
Download
Product Code: AELP1000[GK]

Adam AELP Pallet Beam scales
Our Price: | £549.00 |
List Price: | £671.00 |
Saving Of: | £122.00 |
(Exc. 20% VAT)(£658.80 Inc. VAT) | | In Stock, Delivery in 1-2 Working Days |
