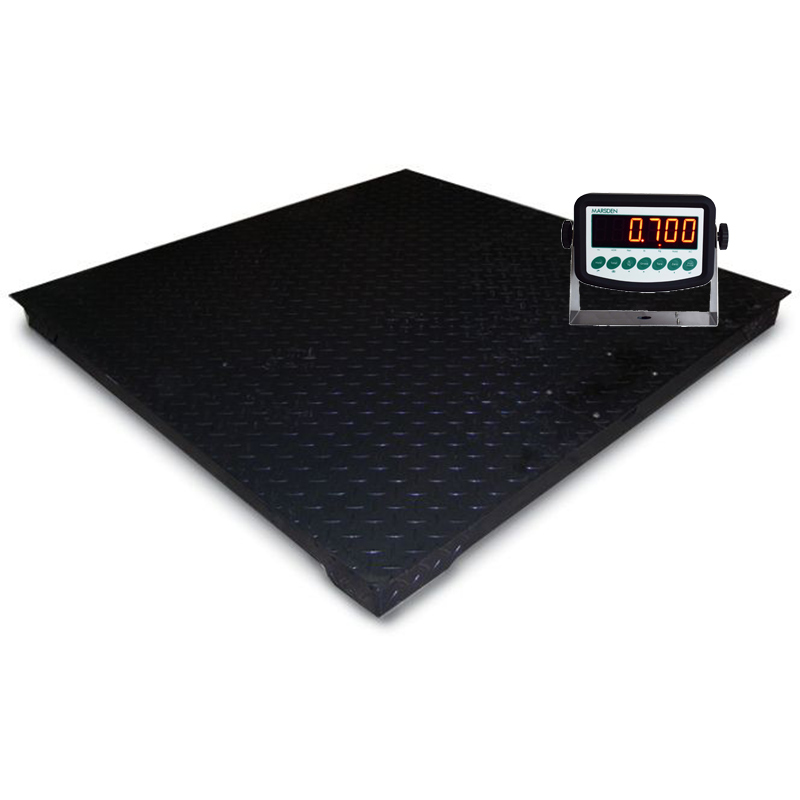

Marsden P-NA: A rugged platform scale for heavy duty industrial use

The Marsden mild steel platform scale, the P-NA, is a robust weighing solution for factories, warehouses and freight companies. It’s low-profile, highly accurate and built to last – and available with a choice of indicators, graduations and capacities.

WHY THE P-NA?

For weighing large quantities of goods, or bulky items, the best solution is often a platform scale. A heavy duty platform scale can be laid out on the floor, or sunken into the ground so that it can be driven over. The P-NA is low profile – so pallets can easily be loaded onto its surface with the use of a forklift. As a non-trade approved platform scale, it serves as an ‘entry level’ heavy duty industrial weighing solution.

IT'S ACCURATE

The P-NA is available with a choice of indicators – each one has its own list of highly useful features, depending on what you need the P-NA for. There’s a choice of capacities and graduations, too – the lower the capacity the higher the accuracy. Choose from capacities of 600kg to 3000kg, and graduations from 200g to 1kg.

IT'S BUILT TO LAST

Choose the P-NA for strength, durability and reliability. Made from mild steel, the P-NA features a durbar ‘checker plate’ surface. 4m of loadcell cable is also included as standard. Each of the 4 x 1000kg capacity loadcells of each P-NA are safely mounted within the structure of the platform, protecting them from damage when in use, or when they’re being moved around your premises by forklift truck. Levelling feet mean the P-NA will sit straight and true, even if the ground they’re on is a little uneven.

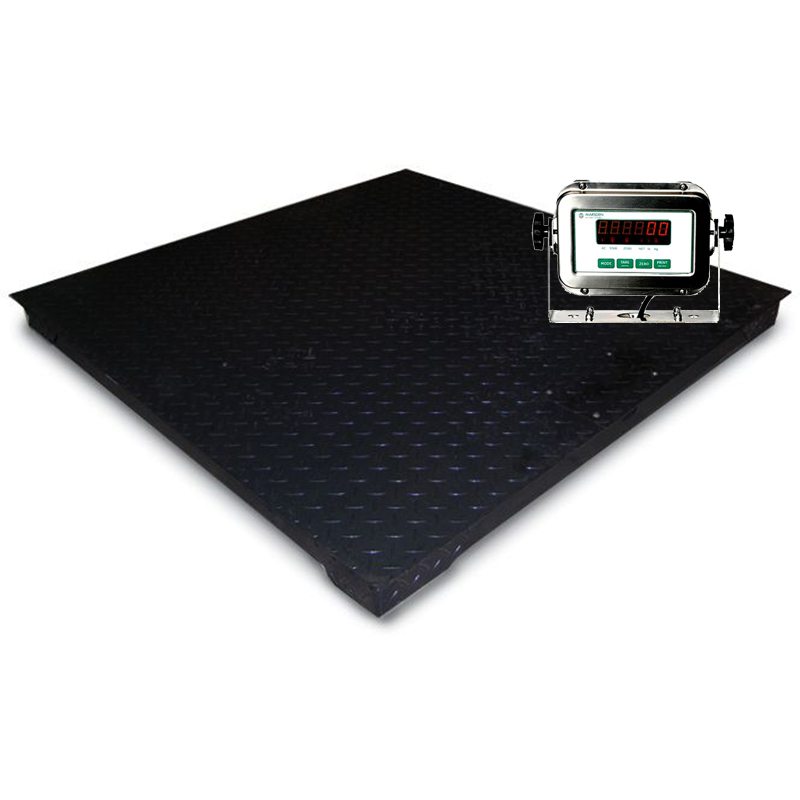

IT COMES WITH A CHOICE OF INDICATORS

A range of indicators available means you can choose a solution that exactly meets your needs.

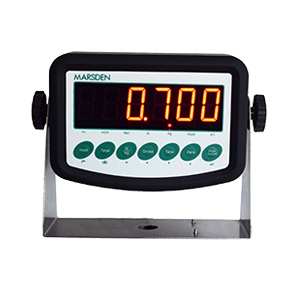

Marsden I-400

The indicator is Marsden's new, hard-wearing I-400. The LED display shows weight readings in bright red 32mm high digits - in fact, it’s so bright, you’ll see weight readings in almost any lighting conditions. All the features are easy to access, too - via the buttons on the front of the indicator. Features include Tare, Hold and Counting mode.

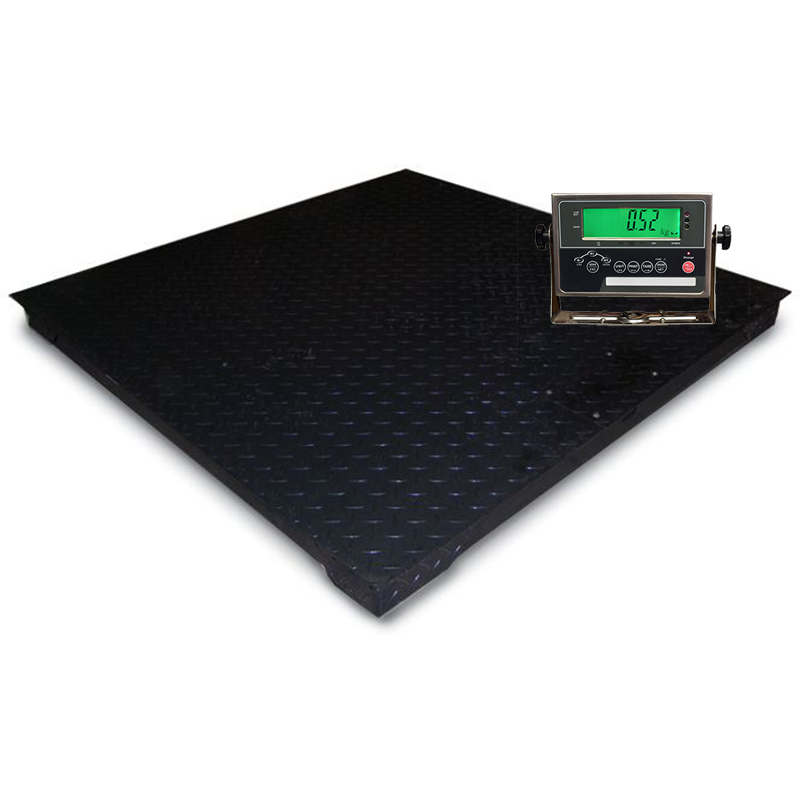

Marsden I-100SS

As an IP65-rated indicator, the I-100SS can be washed down, making it a more flexible and durable alternative to the I-100. Again, it has a rechargeable battery with a long life, a mains adaptor and zero, tare and pre-set tare. The screen is backlit and easy to read.

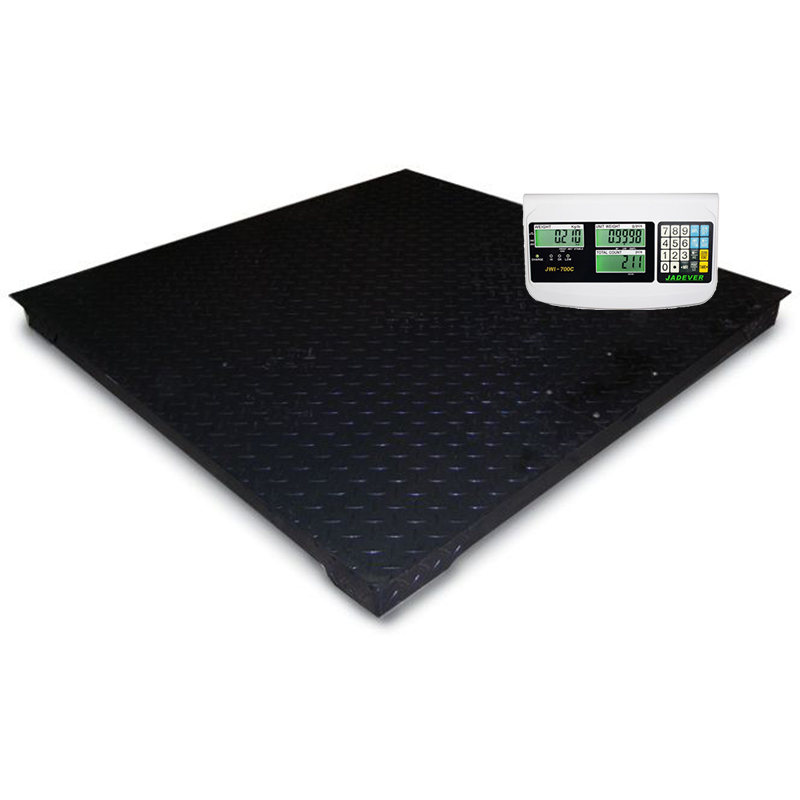

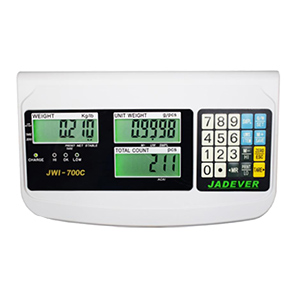

Janeva JIK

The premium indicator solution for the P-NA is the mains rechargeable JIK, the ultimate check weighing indicator. The JIK boasts numerous features, including a hi/lo alarm with visual traffic light that indicates when a weight target has been reached, meaning no waste. With the JIK, the P-NA platform can be used for loading a vessel without needing supervision - protocols can be set up so that, when a target weight is reached, the loading of the vessels stops.

1 YEAR WARRANTY

This Marsden  product has a 1 year warranty

IN BOX

  • Marsden P-NA Platform Scale
  • Your indicator choice
  • Power adapter
  • Manual

TECHNICAL SPECIFICATIONS

Capacity x Readability 600kg x 0.2kg | 1500kg x 0.2kg | 1500kg x 0.5kg | 3000kg x 0.2kg | 3000kg x 0.5kg | 3000kg x 1kg
Platform Size 1000 x 1000mm | 1000 x 1200mm | 1200 x 1200mm | 1200 x 1500mm | 1500 x 1500mm
Weighing Units kg
Applications Weighing, Counting
Stabilisation Time 2 - 3 seconds typical
Operation Temperature -10° to 40°C
Power Supply AC adapter, internal rechargeable battery with upto 90 hours (both included)
Calibration External Calibration

DOWNLOADS

To read and print a PDF file, you must have Adobe® Acrobat® Reader installed on your PC. You can download a version suitable for your system, free of charge, from Adobe.



Marsden P-NA Product Brochure

Product Specification Sheet
Download



ACCESSORIES

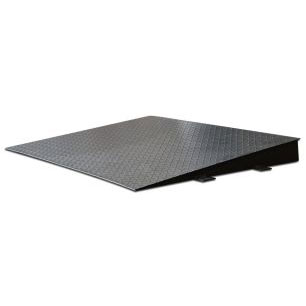

Ramp - 1000mm

Ramp - 1000mm£140.00 + VAT

More Info >>
Ramp - 1200mm

Ramp - 1200mm£140.00 + VAT

More Info >>
Ramp - 1500mm

Ramp - 1500mm£145.00 + VAT

More Info >>

Customers who bought this item also bought:

Customer Reviews
Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Great weighing scale
Tuesday, 25 July 2017  |  Joe

Will weigh anything that will fit on it down to 0.2kg increments.
